Safety mats are used to protect machinery and machines.
Safety mats are used to protect machinery and machines.
Safety mats are used to protect machinery and machines.
Safety mats are used to protect machinery and machines.
Safety mats are used to protect machinery and machines.
Safety mats are used to protect machinery and machines.

Safety mats are used to protect machinery and machines.

Model
LS

Item specifics

Safety carpet area
≤1.5㎡
Safety mat switching current
Max.100mA
Response time
18ms

Review

Description

product description
Product parameter
Product size drawing and parts
Product application scenarios and others
Product Features

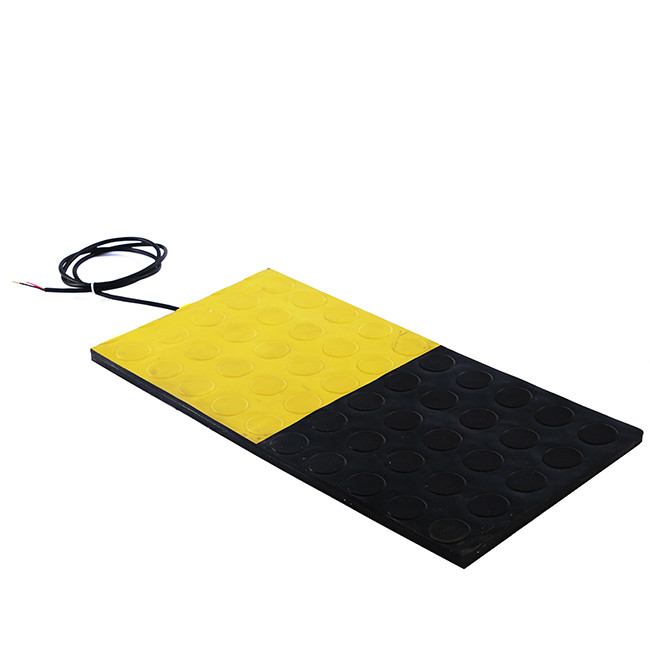

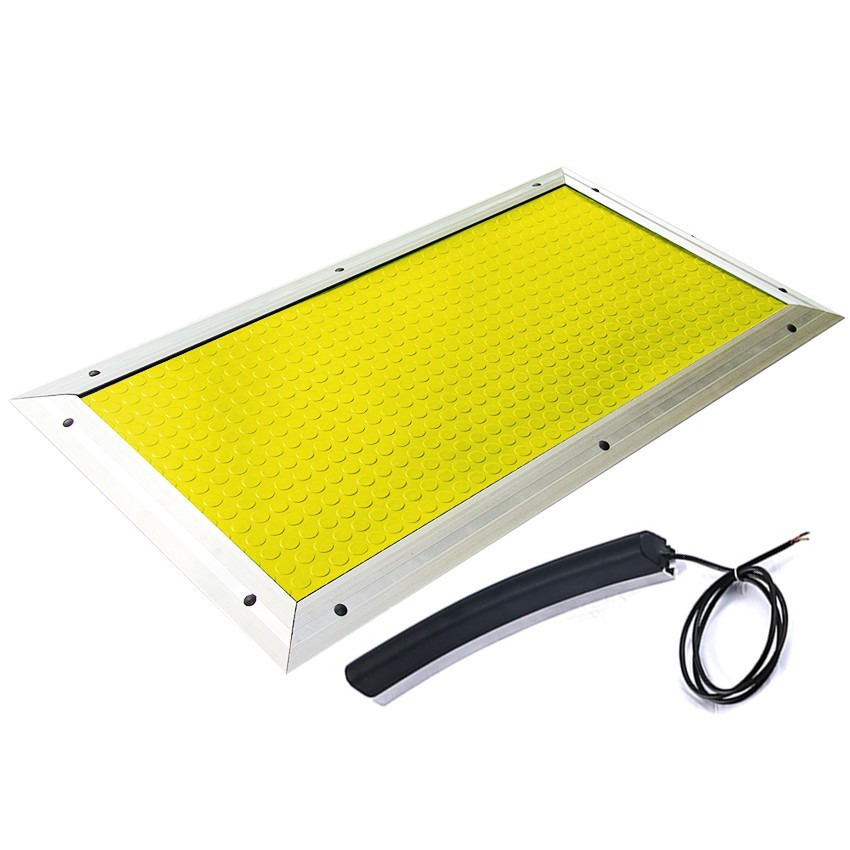

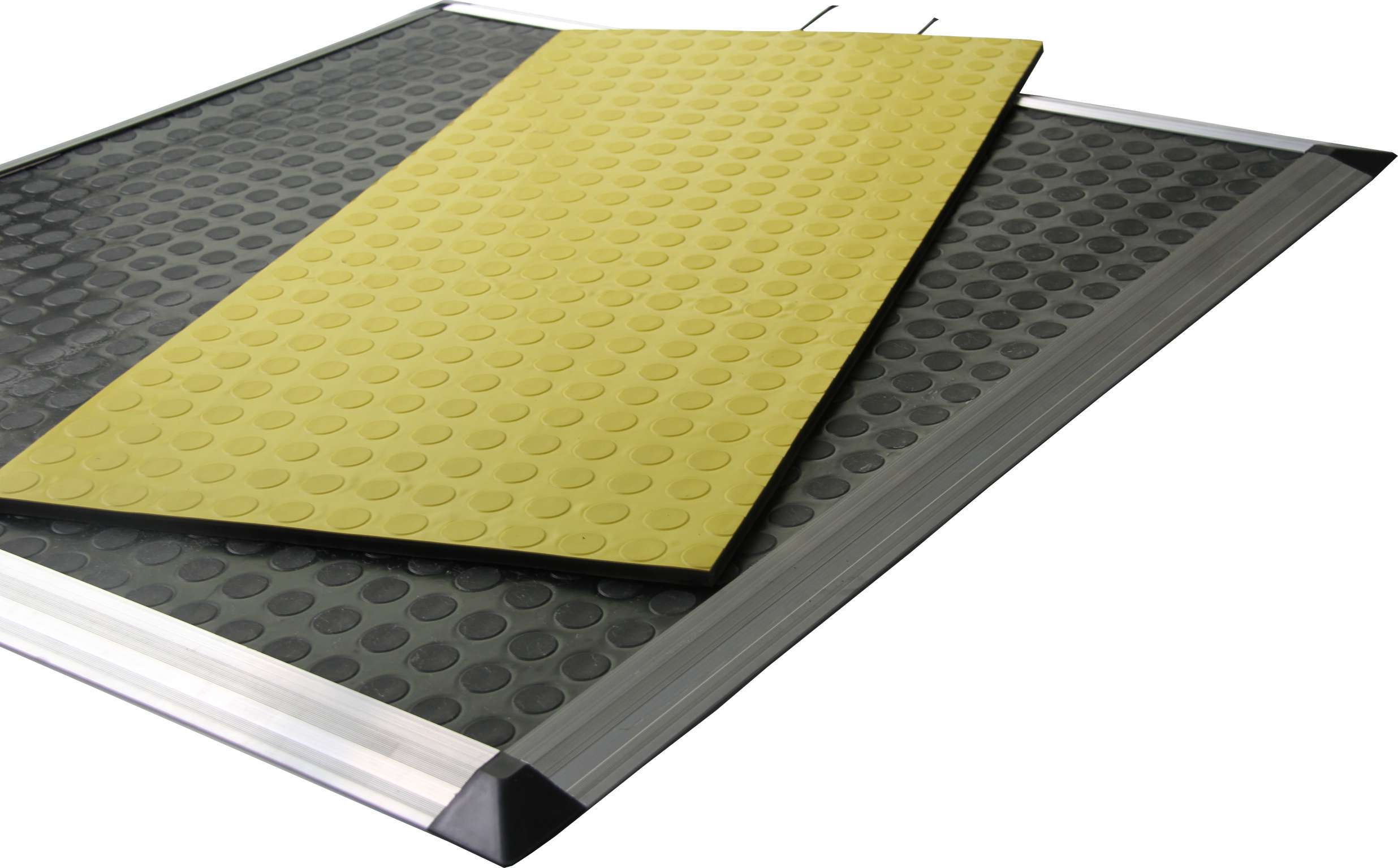

Safety mat constitutes a flat safety device to detect the presence of personnel. Safety mat consists of 2 separate current carrying plates. The boards are separated by insulating strips. Upon actuation of the pressure-sensitive safety mat, a loop is generated. If a person walks on the Safety mat and passes through the safety monitoring module, the safety module will immediately perform actions.

Precautions for use

· Be sure to use Safety mat and safety relays with safety function certification.

· Be sure to use the safety mat with the safety relay that matches this instruction.

·The safety mat cannot be directly connected to the switch contacts of ordinary intermediate relays.

·The safety mat cannot be directly connected to the PLC for use.

Test principle

EN1760-1,ISO13856-1

project

model

LS-PSM2

LS-PSM3

Detection method

Pressure sensing method

Trigger force

＜20kg

Maximum allowable load (8 hours)

≤400N/cm²

≤800N/cm²

Mechanical life

＞1,000,000 times

＞3,000,000times

Safety carpet area

≤1.5㎡

Edge length min/max

200mm/3000mm

Packaging materials

PVC

NBR,CR

Surface protection layer

PVC

NBR,CR

Environmental conditions

status of use

+5℃--+55℃

-10℃--+65℃

Storage status

-20℃--+65℃

Safety mat switching current

Max.100mA

Protection level

IP65

Maximum humidity (23 degrees)

95% (condensation)

Response time

18ms

Security Classification

EN 1760-1 reset command

stand by

ISO 13849-1:2015

Cat.3

MTTFd

＞30 years

B10d

3*107

Nop (accepted)

52560/year

IEC 61508: PFHS

6.99*10-10 1/h (SIL3)



Standard safety mat specifications
Chemical barrier of protective layer
Application

There is a safety protection device on this safety mat. In the safety device of this safety mat, a minimum applied weight is set. When the pressure on the safety mat exceeds the minimum applied weight, then the Carpet switch It will be closed automatically. This function is to protect the operator from potential harm. Safety carpets are used to protect people on machinery and machines. Typical application areas, for example, protection of hazardous areas and surfaces-processing machines, scissor lifts or punch presses. The safety mat constitutes a flat safety device to detect the presence of personnel.
