safety laser scanner is used for robot positioning and navigation with a detection range of 10m

safety laser scanner is used for robot positioning and navigation with a detection range of 10m

Name: safety laser scanner is used for robot positioning and navigation with a detection range of 10m
Brand: CYNDAR
SKU: 18298541
Rating: 4.75 (10 reviews)

Model: XD-TOF-10HM

Item specifics

Product name: 2D-TOF navigation type safety laser scanner

Ranging accuracy: ±30mm

Scan range: 270º

Angular resolution: 0.32º

Detection distance: 10m

size: 50*50*76mm

Review

Description

product description

Product parameter

Product size drawing and parts

Product application scenarios and others

2d laser scanner characteristics

Product brochure download(PDF download)

● laser scanner sensor based on TOF pulse measurement technology

● The laser scanner safety sensor has super-strong ranging ability, up to 10m

● 270˚ scanning, extremely small angle resolution up to 0.32˚

● Very small measuring spot, can accurately detect small objects with high precision

● Anti-light interference: 50000Lux

● Nano-optical dust cover, extended service life and reduced maintenance time

● Japanese motor, long service life

● Convenient and quick multi-layer security protection area setting

● Use human eye safety protection laser, in line with standards

Safety laser scanner power supply

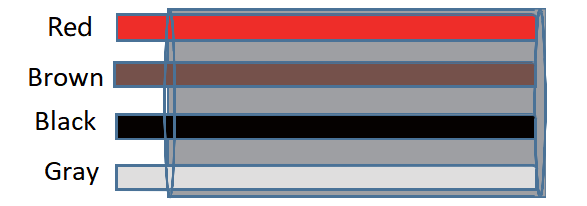

The length of the power cord is 1m, and the power plug is 5.5mm/2.1mm. Defined as follows

Colour	signal	Typical value	Range
Red	VCC+	12V	12V~24V
Brown	VCC+	12V	12V~24V
Black	VCC-	0V	0V
Gray	VCC-	0V	0V

Safety laser scanner installation guide

When installing Lidar Navigation, you need to pay attention to the following:

1. Make it as free from impact and vibration as possible;

2. Make it not exposed to any direct sunlight (windows, skylights) or any other heat source. This prevents the temperature inside the device from rising.

Product application scenarios and others

cyndar provides the fine angular resolution of the lidar navigation sensor and also provides a high sampling rate, which greatly enhances its ability to recognize small targets and effectively reduces the missed detection rate.

TOF-10HM, the core control module for autonomous positioning and navigation, can realize autonomous map creation and complete the integration of positioning and navigation. Due to the requirements for real-time and accuracy, the SLAM system has higher requirements for computing performance. TOF-10HM continuously optimizes the algorithm complexity to reduce system power consumption. At the same time, TOF-10HM is very small, only 50X50X76mm, such process integration is more convenient for users to integrate.

The advantages of a safe food delivery robot with a safe laser navigation sensor: As far as the food delivery contactless delivery robot is concerned, it can not only isolate the waiter contact transmission and delivery droplet transmission, but also reduce labor costs and improve service efficiency. According to the "Investment Times", many companies have been unable to support under the pressure of rent, wages, food materials and other costs. The food delivery robot can help the catering industry alleviate the most difficult problems such as high labor costs and a more severe labor shortage than in previous years. Coupled with the fact that food delivery robots can work uninterrupted 24 hours a day, it has become a development trend for food delivery robots to land in the catering industry.

In the realization of robot autonomous positioning and navigation technology, the current laser SLAM has become a hot topic nowadays. In terms of CYNDA technology laser SLAM technology, it mainly uses TOF-10HM series lidar as the core sensor, and at the same time cooperates with the self-developed high-performance SLAM algorithm, which can enable the robot to perform autonomous positioning, mapping and path planning in an unknown environment. Features.

In recent years, the emergence of unmanned supermarkets and unmanned shelves has allowed the market to see the development potential of the new retail industry, and new pharmaceutical retail is also making efforts. Install safety laser scanners in unmanned pharmacies to detect personnel entry and exit, flow, and data collection

Factory and product content

About the certificate

recommend

Laser scanner can detect workers in dangerous areas of the machine 20m

Model : XD-TOF-10HM

Compact safety laser scanner lidar based navigation for robots

Model : XD-TOF-10HM

Safety laser scanner 2d for robot AMR navigation programmable

Model : XD-TOF-10HM

2D safety laser scanner sensor for laser navigation and positioning

Model : XD-TOF-10HM

Safety laser scanner sensor used for AGV mobile robot safety and positioning

Model : XD-TOF-10HM

Item category	Two-dimensional plane navigation type laser radar safety laser scanner
product code	XD-TOF-10HM
Measuring range	0.1-5M@10% reflectivity 0.1-10m@90% reflectivity
Measurement error	±30mm
Scan angle range	270º
Scanning frame rate	20Hz
Angle resolution	0.32º
Power supply potential difference	DC12V-24V
Working current	0.21A/12A (typical)
Laser safety level	905nm class I
Power consumption	2.5W
Data transmission interface	Ethernet100BASE-TX
Response time	＜10S
Indicator light	Power indicator, status indicator
Environmental illuminance range	＜50000Lux
range of working temperature	-10 ºC▬55 ºC
Storage temperature range	-30 ºC▬75 ºC
