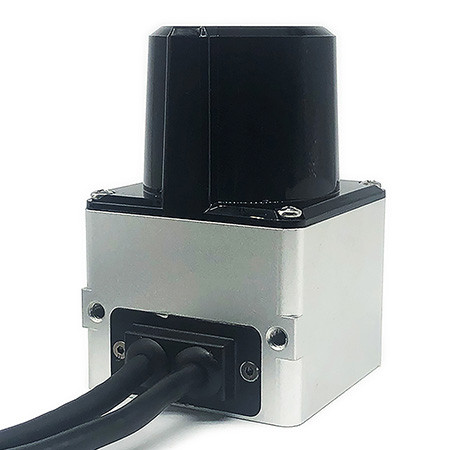

Safety laser scanner sensor used for AGV mobile robot safety and positioning
- Model
- XD-TOF-10HM
Item specifics
- Product name
- 2D-TOF navigation type safety laser scanner
- Ranging accuracy
- ±30mm
- Scan range
- 270º
- Angular resolution
- 0.32º
- Detection distance
- 10m
- size
- 50*50*76mm
Review
Description
Introduction to laser scanner sensor
CYNDAR a provides the industry's top safe lidar navigation with a minimum angular resolution of 0.32° to achieve a fine restoration of the surrounding environment. The user can change the motor speed through configuration, so that the output point cloud image frame rate can be adjusted within the range of 10-30Hz. Xinda provides both fine angular resolution and high sampling rate, which greatly enhances its ability to recognize small targets and effectively reduces the missed detection rate.

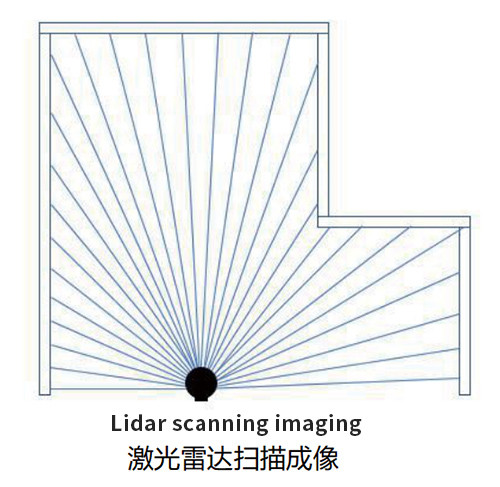

Working principle of laser scanner sensor
In the construction of the map, the lidar navigation sensor is an important tool for mapping, and its importance is self-evident. In this process, the safety laser scanner sensor acts as the "eye" and can help the robot perceive the surrounding environment . Before the robot builds the map, it needs to install the lidar accurately. Whether the safety laser scanner sensor is installed correctly will directly affect the subsequent positioning and mapping.
