Model
CST

Item specifics

Anti-light interference
10000lux (incidence angle≥5°)
voltage
AC110-220V±15% 50/60Hz
Current consumption
≤200mA

Product review

Description

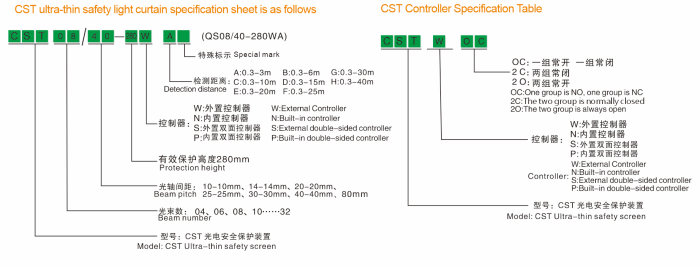

CST Specification Sheet
Product Features

◆ Passed CE certification, safety protection level 4

◆ light curtain safety device complete specifications and models, easy installation, simple wiring

◆ Safety light curtain sensor perfect self-check function

◆ ir light curtain has strong anti-electromagnetic and light interference ability

◆ muting sensor has strong vibration resistance, superior waterproof and dustproof performance

◆ The light curtain sensor has the function of working status, wiring, fault indication and auxiliary light alignment

FAQ:

Dual independent OSSD output:

In terms of output, in order to pursue better safety, dual independent redundant outputs are used, which makes automatic failure prevention with high safety, and can directly drive safety relays and safety PLCs;

 The reaction is more sensitive:

  The reaction time of all grating products in this series is within 15ms;

Overload and short circuit protection:

When the infrared safety light curtain output is overloaded or short-circuited, the grating will enter the protection state, and the grating safety system will be closed at the same time;

 Self-test:

   Within 2 seconds of turning on the power, implement self-test to ensure that there is no malfunction;

Power-on delay function:

   3 seconds after power-on, the grating can make the equipment work normally, which can give the operator and equipment a buffer time to improve the safety of the equipment and personnel;



Light curtain form

Opposite

Optical axis spacing

10mm

14mm

20mm

25mm

30mm

40mm

Detection accuracy

18mm

22mm

28mm

33mm

38mm

48mm

Number of beams

6、8…32

6、8…32

4、6…32

6、8…32

4、6…32

4、6…32

Protection height

Optical axis spacing × (number of beams-1)

Detection distance

0.3-3M /0.3-6M /0.3-30M

Response time

≤15ms

Anti-light interference

10000lux (incidence angle≥5°)

Dimensions

35×51×Lmm (L is the length of the emitter/receiver)

voltage

AC110-220V±15% 50/60Hz

Current consumption

≤200mA

Output contact capacity

AC250V/5A or DC30V5A

Connection method

Circular aviation socket with special link cable, 4 cores for emitter and 5 cores for receiver



Component
Seven core interface
Fixing frame (aluminum alloy)
Mounting brackets
Five-core data cable
Shape
Function and application:

Stamping machinery protection device: infrared safety device (safety light curtain): install infrared emission and receiving device (safety light curtain) in the danger zone, when the hand enters the danger zone, it will block the light, the safety device immediately brakes and stops the slider The rhyme goes down to ensure the safety of manpower.

This light curtain can be used in Hydraulic injection molding machine ir light curtain safety light curtain sensor
