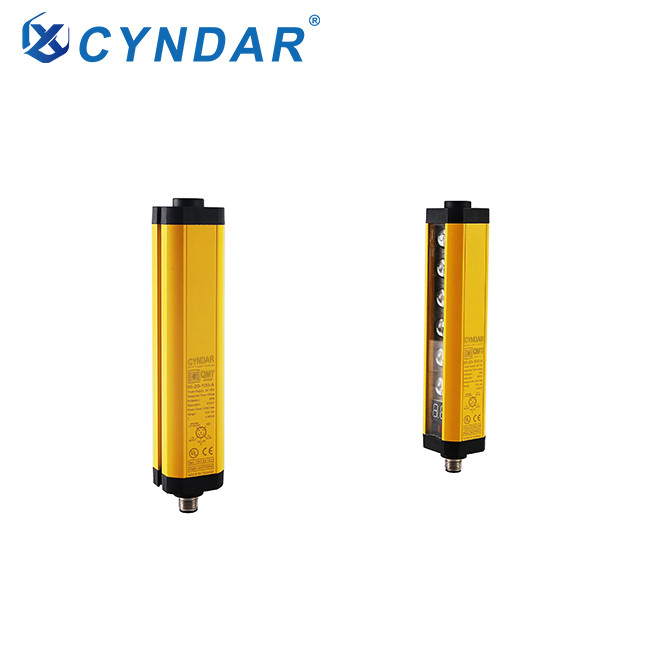

Automatic warehouse transportation measuring height measurement safety light curtain
Automatic warehouse transportation measuring height measurement safety light curtain
Automatic warehouse transportation measuring height measurement safety light curtain
Automatic warehouse transportation measuring height measurement safety light curtain
Automatic warehouse transportation measuring height measurement safety light curtain
Automatic warehouse transportation measuring height measurement safety light curtain
Model
CLT

Item specifics

Detection distance
30~3000mm, 30~6000mm, 30~10000mm
light source
Modulated infrared LED
Shell material
Aluminum alloy, end cover: ABS reinforced nylon

Product review

Description

CLT Specification Sheet
Product Features

1. Measure and detect the size of the object.

2. Detect the holes. Measure the size of the hole through the infrared light curtain.

3. parts counting, classification inspection.

4. Position tracking, spraying, etc.

What are the characteristics of the measuring light curtain itself


1) The safety light curtain sensor responds efficiently and is flexible and reliable

2) It is reported that the current high-quality measuring light curtain device itself has a stable response capability, and the user can obtain efficient detection results with a shorter response time during the application process.

3) At the same time, its own super long and focusing detection method can make the current reliable measurement of light curtain safety device corresponding to the measurement distance better.

4) In the detection process of a series of object sizes and object contours, the flexible detection method of this measurement light curtain safety device can be used to realize the accuracy inspection of different products.

Light curtain form

Opposite

Optical axis spacing

1.25mm

2.5mm

5mm

10mm

20mm

40mm

Detection accuracy

2mm

3.75mm

6.5mm

15mm

25mm

45mm

Number of beams

64/96…480

32/48…480

16/24…480

8/10…480

4/6…480

4/6…480

Protection height

Optical axis spacing × (number of beams-1)

Detection distance

30~3000mm, 30~6000mm, 30~10000mm

Dimensions

36×36×Lmm (L is the length of the emitter/receiver)

voltage

DC12/24V AC110-220V (with controller, relay passive output)

Current consumption

≤200mA

Output

RS485/RS232 I: 4-20mA U: 1-10V

Connection method

Waterproof round aviation socket with special link cable, 7/5 core for emitter and 7/5 core for receiver

Resistant to ambient light

Incandescent light: 3000Lx of light-receiving surface; Sunlight: 10000Lx of light-receiving surface

Ambient temperature

When working: -10~+40℃ (but not freezing), when storing: -25~+55℃

environment humidity

When working: 35~85%RH, when storing: 35~95%RH





Component
Seven core interface
Mounting brackets
Seven-core data cable
Swivel arm (aluminum alloy)
Shape
Wiring diagram
What are the common uses of size measurement light curtains

Automatic warehouse transportation measuring height measurement safety light curtain is used in the inspection of product qualification in the processing and manufacturing industry

Any high-precision equipment must be tested by various methods during production to ensure that subsequent use is safer and more reliable. Especially in industries such as automobile manufacturing and wood processing, the requirements for size are more accurate, so Simple application and maintenance size measurement Infrared light curtain ir light curtain can accurately analyze whether the relevant production materials meet the qualified standards, only in this way can the size measurement laser curtain sensor accurately detect the quality and basic size of the product;
