- Protection distance
- 30~3000mm, 30~6000mm
- Output current
- Protection level

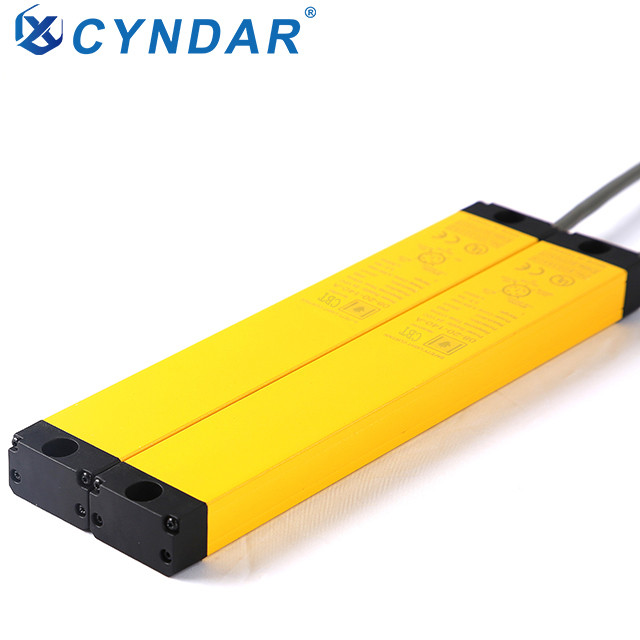

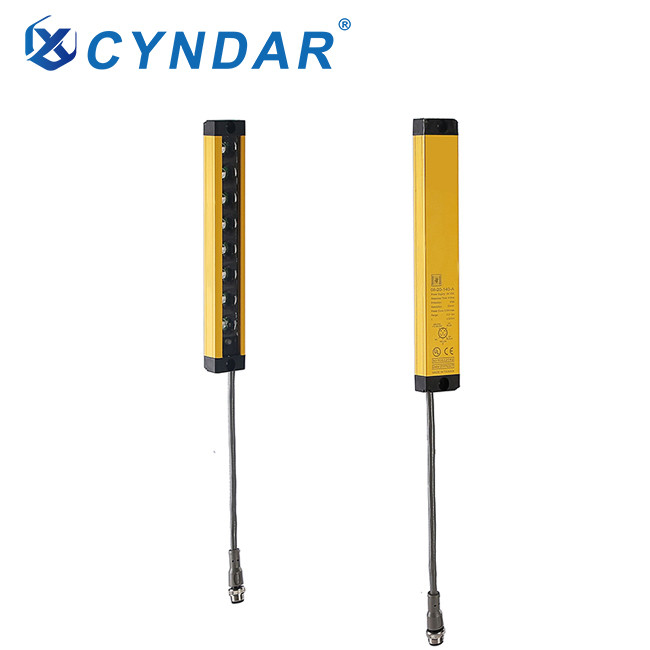

The light curtain safety device is used in occasions requiring small space, close installation or in need of privacy, etc. It can be applied to the machine door as a protection or starting signal.
The light curtain senso adopts the installation method with the upper and lower ends close to each other, which occupies a small space, has good privacy, is delicate and beautiful, and has stable performance. It is widely used in non-standard equipment or equipment with a small installation location, and can also be used in AOI and other optical detection equipment as protection or start signal.
The safety light curtain sensor has the advantages of small size, multiple models, convenient and simple operation.
What are the precautions when choosing safety curtain sensor?
At present, high-risk production companies are mostly related to the dangers of the use of mechanical equipment, such as various cutting machinery and other equipment that we are familiar with. These equipment belong to high-risk equipment in the production of enterprises, and the light curtain safety category requirements for different equipment are also different. There are a variety of options to adapt to different mechanical facilities, so the variety of infrared light curtain types needs to be formulated according to the needs of the enterprise itself.
1. Light curtain guarding has perfect self-checking function and strong anti-interference ability.
2. Superior shockproof performance.
3. Short response time, high safety and reliability
4. Ultra-small shape design, effectively reducing the installation space, the light curtain is connected with the cable through the aviation plug seat, which can be accurately, quickly and easily installed, unloaded and wired.

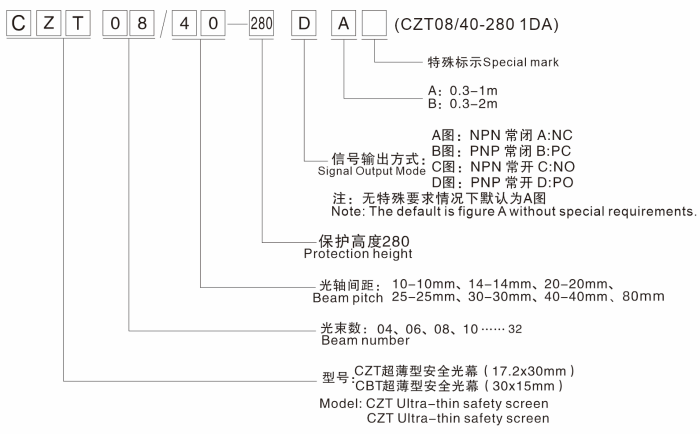

Light curtain form
Optical axis spacing
Number of beams
High protection area
Optical axis spacing × (number of beams-1)
17.2×30×Lmm (L is the length of the emitter/receiver)
DC12/24V AC110-220V (relay output)
NPN/PNP type, sink current 500mA, voltage drop below 1.5V, polarity, short circuit, overload protection
Circular aviation socket with special link cable, 5 cores for emitter and 5 cores for receiver
What are the reasons for using ultra-thin safety light curtain
ir light curtain has strong applicability and can be applied to a variety of operating environments
The existence of ultra-thin gratings in many modern factories solves a large number of application problems and difficulties. Nowadays, many factories will design assembly lines that meet the production requirements to meet the production requirements. This will use more large-scale machinery, and sometimes it is easy to cause hidden dangers to the staff. Such as stamping machinery, electroslag pressure welding machine, hydraulic bending machine, profile cutting machine, hazardous area (toxic, high pressure, high temperature, etc.). In response to this situation, companies not only need to check equipment regularly, equipped with corresponding protective work clothes and gloves, but also need ultra-thin installation of ultra-thin safety light curtain Type 4 compact safety light curtain sensor is used in punch injection molding industry. Such equipment helps reduce accidents. Occurrence, so that staff can work more at ease at work, so that enterprises can reduce unnecessary losses.
Based on the above, the emergence and use of ultra-thin light curtain sensor has helped most companies solve dangerous mechanical equipment, and also reduced the chance of operators being injured at work. It is hoped that automated production and processing, metal cutting and welding, textiles Related companies such as machinery can learn about this kind of safety equipment that is beneficial to enterprise production and the personal safety of enterprise staff.
