2D infrared laser scanner sensor safety laser scanner

The safety laser scanner can realize two-dimensional area monitoring with a 270-degree scanning angle and a 5-meter wide protection zone. With the free configuration of warning and protection areas, safety laser scanners are very suitable for integration with various applications. Safety laser scanners are particularly suitable for the protection and access monitoring of static and moving areas.

Features and advantages of 2D infrared laser scanner sensor safety laser scanner
Combined with a small configurable controller or relay, you will get a complete and economic one-stop solution



2D infrared laser scanner sensor safety laser scanner product appearance
CYNDAR 2D infrared laser scanner sensor safety laser scanner TOF-05D can be used for safety monitoring inside and around the machine and system. With parallel protection zones and integrated safety switch output, a TOF-05D safety laser scanner independently monitors two zones or more.
Note for use:

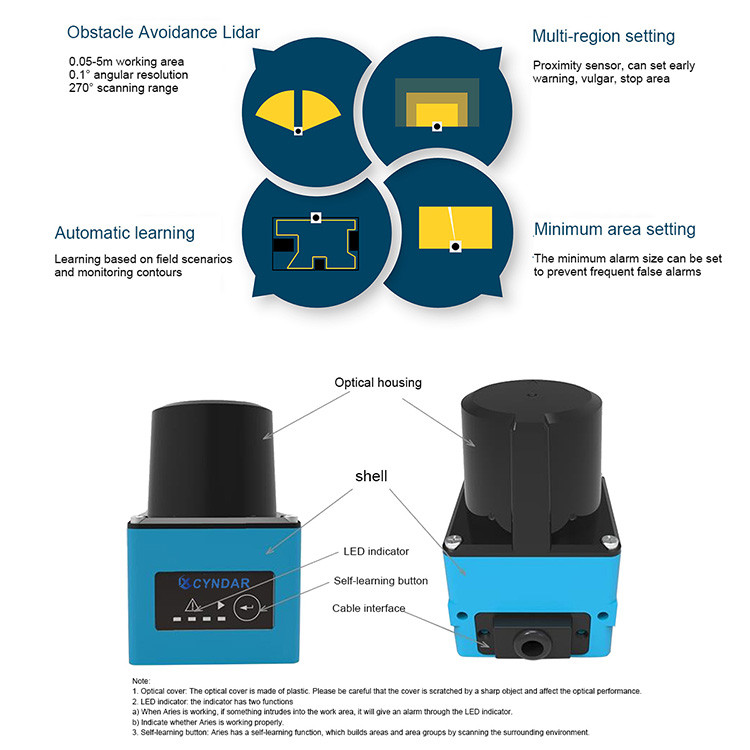

1. Optical cover: The optical cover is made of plastic material. Please be careful that the cover is scratched by sharp objects, which will affect the optical performance.
2. LED indicator: the indicator has two functions
A) When the radar is working, if there is an object invading the working area, the LED indicator will alarm.
B) Indicates whether the 05D series is working normally.
3. Self-learning button: 05D series has a self-learning function, by scanning the surrounding environment, building areas and area groups
Product parameter

Item category

2D laser scanner sensor security scanner

product code

XD-TOF-05D

I/O output (selection)

NPN(Can be set to normally open or normally closed)

Recognizable body shape

Almost any shape

PNP(Can be set to normally open or normally closed)

system error

±30mm

Laser safety level

905nm(class I)

Number of working areas

16 area groups, each area group contains 3 areas

Scanning frame rate

15Hz/30Hz



Micro-USB

Scanning angle

270º

I/O input

Micro-USB

Scan angle resolution

0.1 º/0.3°

I/O input

GND/NC*4

Detection distance

0.05m-5m

I/O output

PNP*3 Equipment working status indication*1

With self-learning button

Automatically scan the environment, generate area

Signal output hold time

100ms-10000ms (adjustable) 330ms typical

Electrical link

DB15MALE/discrete line

Reaction time

67ms-30000ms (adjustable) 134ms typical

Operating Voltage

DC9V-28V

Status Indicator

Status indication*1, area group indication*3

power

2W

Anti-vibration

10-55Hz, amplitude 0.75mm, XYZ triaxial, 2 hours per axis; 50-200Hz, 196m/s² (20G), scanning speed 2min/x cycle, XYZ triaxial, 2 hours per axis

Switch drive

DC30V50mA

range of working temperature

905nm(class I)

Shape tone

Color blue

Storage temperature range

15Hz/30Hz

Waterproof and dustproof grade

IP65

Environmental illuminance range

270º

body weight

150g body weight (without cables)

Specification (length * width * height)

50mm*50mm*76mm

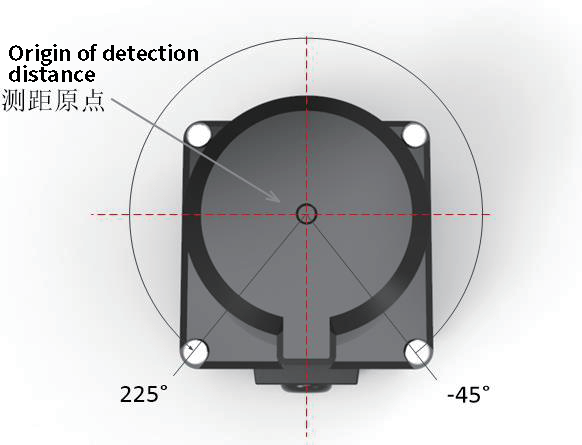

CYNDAR 2D infrared laser scanner sensor safety laser scanner Size
CYNDAR 2D infrared laser scanner sensor safety laser scanner software:There are 2 ways to use the software
Edit interface
Edit bar: used to edit areas and area groups to meet user needs.
Monitoring interface
Display bar: used to display the effect of area editing and point cloud data.
With screw holes can be used to fix 2D infrared laser scanner sensor safety laser scanner parts
1950mm connect to external power cord
With 1000 mm USB cable to connect to the host computer


GND/NC*4,( Users can request PNP*3 or NPN *3when purchasing)
With screw holes can be used to fix 2D infrared laser scanner sensor safety laser scanner
Product application scenarios and others
TOF-05D safety laser scanner sensor can be used for area protection, warehouses, banks, automated factories, etc.
The laser area scanner can be used to monitor the conveyor belt robot arm area, protect the human body, and realize industrial automation
The laser scanner safety sensor with a protective area can be used for tire production to protect people
Factory automated production, laser scanner sensor can be used for warehouse shelf area protection
The safety laser scanner can be used to protect the security perimeter area such as museum exhibition hall bank
